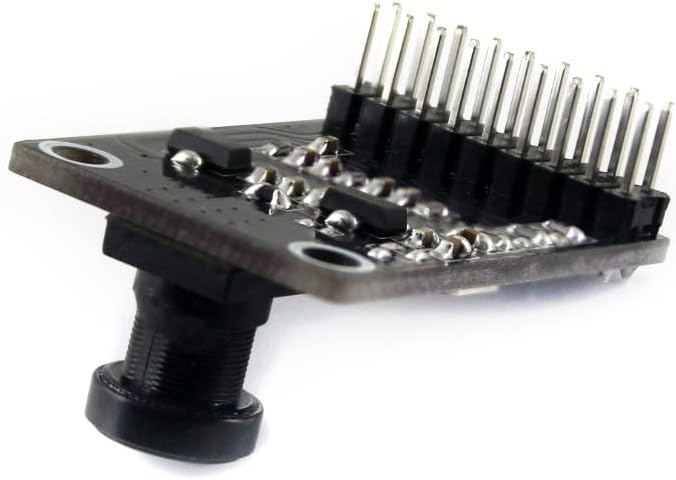

waveshare OV5640 Camera Board (B) Image Sensor Module 5 Megapixel (2592x1944) Fisheye Lens to Achieve 170 Degree Diagonal
Product details
| Management number | 217004637 | Release Date | 2026/04/19 | List Price | $11.60 | Model Number | 217004637 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Features Pixels: 5 megapixel Resolution: 2592x1944 Sensor: OV5640 1.4um x 1.4um pixel with OmniBSI technology, high sensitivity, low crosstalk, low noise Automatic image control functions: AEC, AWB, ABF, ABLC, etc. Image quality controls: color saturation, hue, gamma, sharpness, lens correction, etc. Supports image scaling, panning, windowing, etc. Lens: CCD size: 1/4inch Aperture (F): 2.5 Focal Length: 2.0mm Diagonal: 170 degree (fisheye) Output Formats: YUV(422/420)/YCbCr422 RGB565/555/444 CCIR656 RAW RGB Compressed Data Operating Voltage: 3.3V Control Interface: SCCB (I2C compatible) Data Interface: DVP 8-bit Dimension: 35.70mm × 23.90mm PACKAGE CONTENT OV5640 Camera Board (B) x1
- Camera Module Based on OV5640 Image Sensor, 5 Megapixel (2592x1944), Fisheye Lens to Achieve 170 Degree Diagonal
- 1.4um x 1.4um pixel with OmniBSI technology, high sensitivity, low crosstalk, low noise
- Image quality controls: color saturation, hue, gamma, sharpness, lens correction, etc.
- Automatic image control functions: AEC, AWB, ABF, ABLC, etc.Supports image scaling, panning, windowing, etc.
- CCD size: 1/4inch;CCD size: 1/4inch;Focal Length: 2.0mm;Diagonal: 170 degree (fisheye).
| UPC | 614961951501 |
|---|---|
| Zoom | Digital |
| Brand | waveshare |
| Color | OV5640 Camera Board (B) |
| Features | Infrared |
| Lens Type | Fisheye |
| Focus Type | Manual Focus |
| Model Name | ov5640 |
| File Format | JPEG |
| Form Factor | Compact |
| Item Weight | 0.07 Kilograms |
| Screen Size | 4 Inches |
| Sensor Type | BSI CMOS |
| Digital Zoom | 2 x |
| Manufacturer | Waveshare |
| BuiltIn Media | Camera Body |
| Viewing Angle | 170 Degrees |
| Camcorder Type | Video Camera |
| Shooting Modes | Automatic |
| Antenna Location | action sports recording, travel vlogging, panoramic filming |
| Maximum Aperture | 2.5 f |
| Video Resolution | 1080p |
| Flash Memory Type | SD |
| Photo Sensor Size | 1/4-inch |
| Compatible Devices | Personal Computer, Tablet |
| Image Aspect Ratio | 16:9 |
| Image stabilization | false |
| Video Capture Format | MP4 |
| Wireless Compability | Infrared |
| Exposure Control Type | Automatic |
| Are Batteries Included | No |
| Supported Image Format | JPEG |
| Water Resistance Level | Not Water Resistant |
| White Balance Settings | Auto |
| Connectivity Technology | SCCB (I2C compatible) |
| Has Image Stabilization | No |
| Item Dimensions D x W x H | 1.41"D x 1.41"W x 1.41"H |
| Display Resolution Maximum | 1080p Full HD |
| Flash Memory Bus Interface Type | SD |
