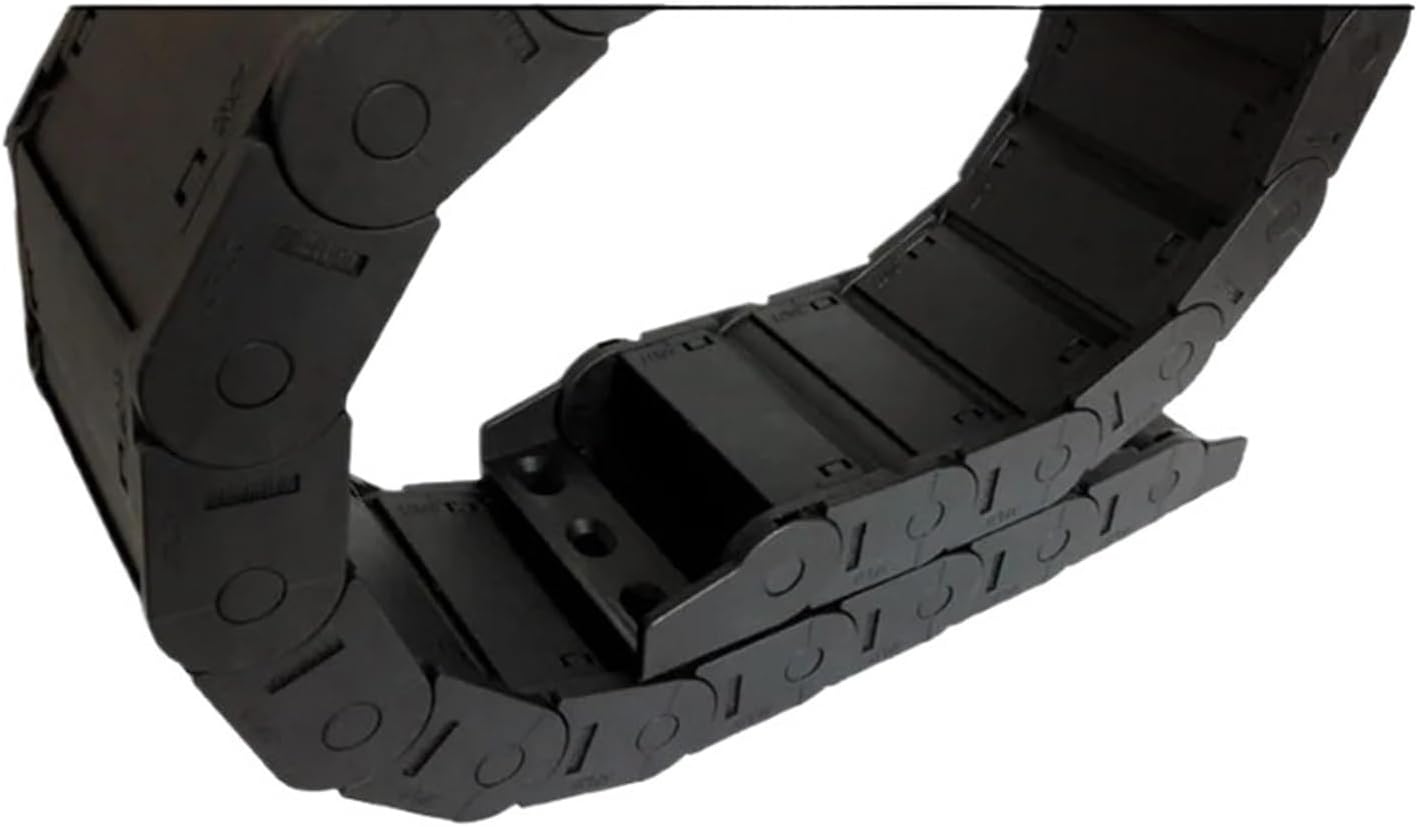

Transmission Chain of Power 1 Meter 25x77mm Wire Carrier Cable Drag Chain CNC Router Tools End Joints Closed On Both Sides Transmission Transmission Chain of Power(R250)

25x77 1 MeterClosedOpen on Both Sidestypeengineering nylon towline with endConnectorscable protection chain drag chain tankschainThe default is a length of 1 meter, with connectors at both ends. Uses and Features:1) Suitable for use in a reciprocating motion of the occasion, can be built-in cable, tubing, pipe,plumbing, etc. play traction and protection.2) Each section towline can open, easy installation and maintenance. Exercise low noise,wear-resistant, high-speed movement.3) The towline has been widely used in CNC machine tools, electronic equipment, stone machinery,glass machinery, doors and windows machinery, injection molding machines, robots, overweighttransportation equipment, automated warehouses.Plastic towline structure:1) The towline shape like tanks chain, composed by a large number of unit links between therotating freely link.2) Within the same series of towline high, outside the high, the same pitch, towline in width, bend radius R may have a different choice.3) Unit chain around the chain plate and the upper and lower cover composition, towline can openeach section, easy assembly and disassembly without threading, to the cable, tubing, pipe, pipe,etc. into the towline after opening the cover.4) Also available separators, the chain separated by space as needed.Towline selection of main parameters:Within high: Select built-in cable, tubing, pipe, pipe, etc. As one of the most coarse reference height,plus at least 10% of the height of the space within the towline as high. If the overlap byoverlapping the actual height as the reference height.Wide: Choose thicker some cables, tubing, pipe, water pipes, with its outer diameter and as thetowline wide reference, and stay at least 10% of the width of the space.Bending radii R: choose built-in cable, tubing, pipe, pipe, etc. The maximum bending radius as a reference value, and left more than 10 percent of the space.Use towline length

• Hign-concerned Chemical : None
• Item Type : Mechanical Kit/Hardware Parts
• Material : Plastic
• Model Number : Series 25
• Standard or Nonstandard : Standard
