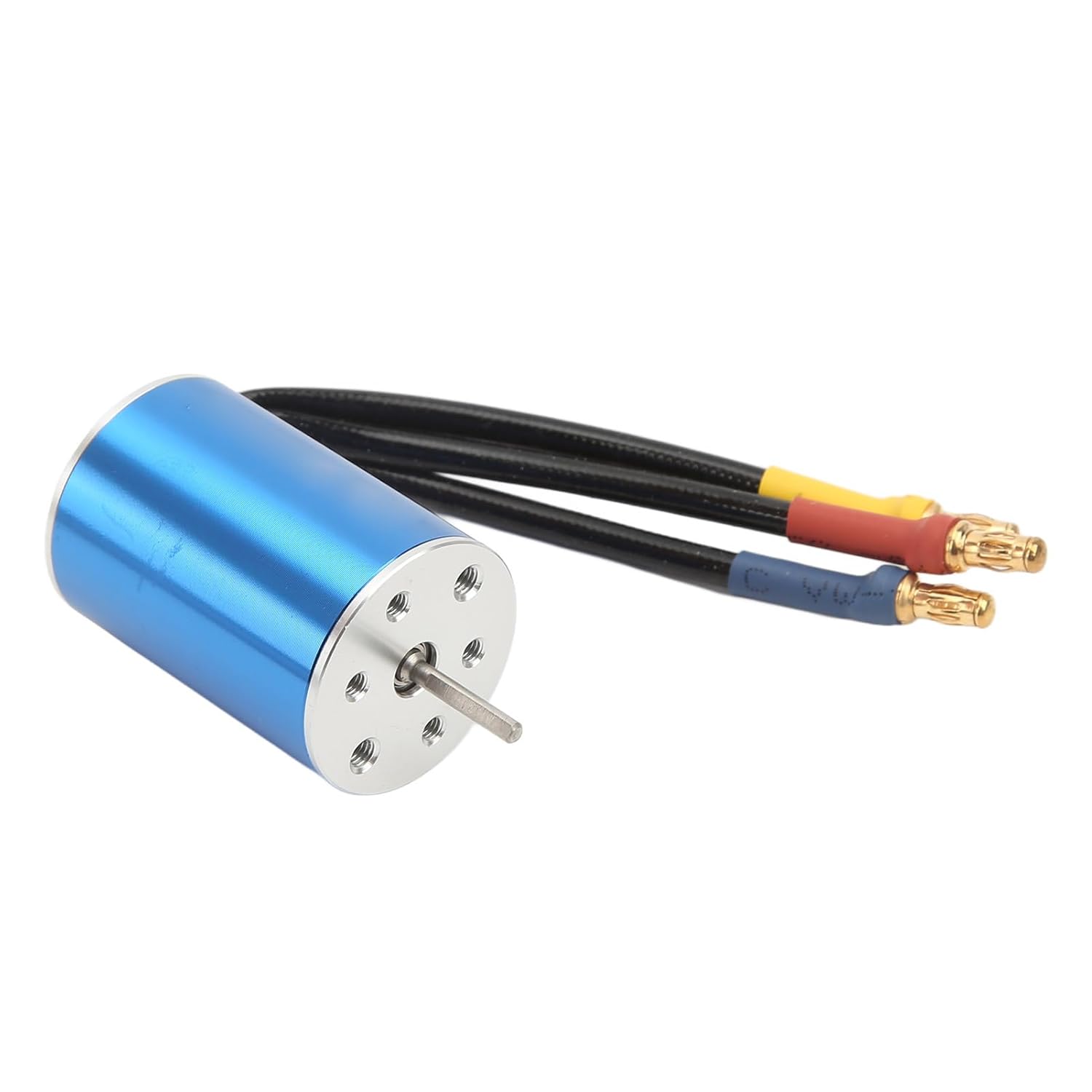

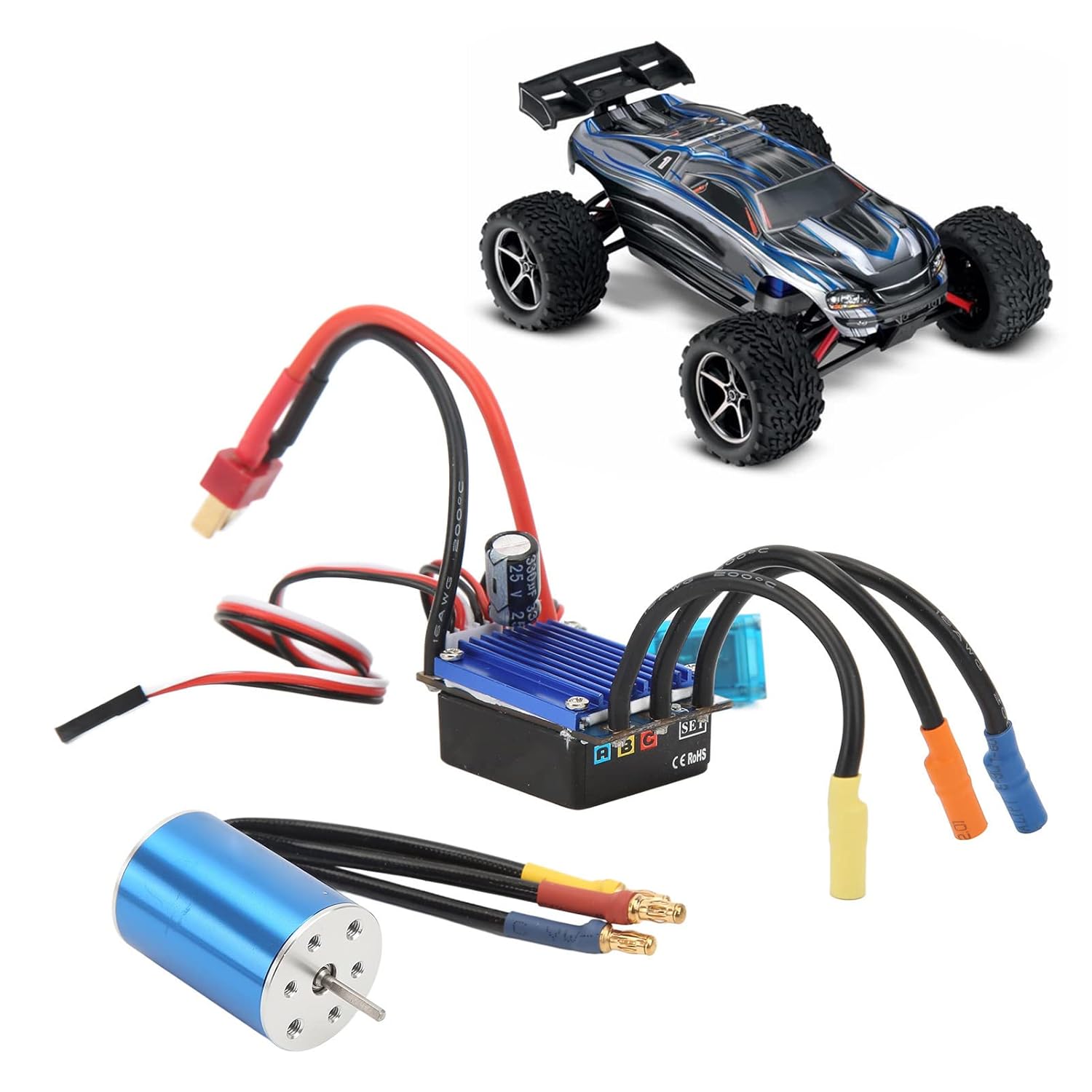

RC Brushless Motor ESC, 2435 4800KV 4 Pole 12 Slot High Torsion Motor with 25A Brushless ESC, for HSP 1/16 1/18 RC Car
Product details
| Management number | 222908133 | Release Date | 2026/05/09 | List Price | $11.04 | Model Number | 222908133 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Specification: Item Type: RC Brushless Motor ESC Motor Parameters Material: Aluminum Alloy Color: Dark Blue Motor Size: Approx. 24x34.5mm / 0.9x1.4in Shaft Diameter: Approx. 2mm/0.1in Shaft Length: Approx. 12mm/0.5in KV Value: 4800KV Wattage: 300 Maximum Speed: 60000 Maximum Voltage: Maximum Current: 22A Number Of Rotor Poles: 4 Connector: 3.5mm Banana Head Male ESC Parameters Material: Plastic, Aluminum Alloy Color: Dark Blue ESC Size: Approx. 41x28x17.5mm / 1.6x1.1x0.7in (Without Cable) Continuous Current: 25A Peak Current: 100A (10 Seconds) Applicable Battery: 2S Lipo Power Plug: T Plug Connector: 3.5mm Banana Head Female Applicable: For Traxxas, For HSP, For And Other Brands 1/16 1/18 Remote Control How to Use: 1. There is no strict wire sequence requirement for motor and ESC connection, the A B C of the motor can be connected to the three wires of the ESC at will, if there is a reverse direction, any exchange of two motor wires can be made. 2. Before turning on the power of the RC car, please make sure to double check the correctness of the power system connection and the reliability of the installation. PackageList: 1 x Motor 1 x ESC 1 x Instruction Manual Note: Please allow some error due to manual measurement.
- HIGH TORSION ROTOR: 2435 4800KV brushless motor is designed with 4 poles and 12 slots high torsion rotor, with powerful torsion and stable output power.
- EFFICIENT OPERATION: 25A brushless ESC is built with premium components to ensure efficient operation. Excellent start up, acceleration and linearity features.
- CNC MACHINING: CNC machined 6061 T6 aluminum front and rear cover. High purity high temperature copper coil, effectively provide high efficiency.
- HIGH PRECISE BEARING: Sensorless brushless motor adopts high toughness stainless steel output shaft and high precise premium bearings to make the motor super durable.
- MULTI PROTECTION FUNCTION: RC brushless motor ESC has multiple protection functions, low voltage cut off protection, overheating protection, and loss of throttle signal protection.
| ASIN | B0G95GMDL3 |
|---|---|
| Model | Qudinipy0n6lfkpu7 |
| Brand Name | Qudinip |
| Model Name | Qudinipy0n6lfkpu7 |
| Part Number | Qudinipy0n6lfkpu7 |
| Manufacturer | Qudinip |
| Included Components | no |
