Qr /1d/2d/Code Scanner V3.0 Bar Code Scan Recognition Module Serial Communication Uart Interface Usb Keyboard Input

Wireless Connectivity:<br>Wi-Fi 802.11<br>Bluetooth 5.0+BT mesh<br>Programming Platform: for -ide,Micropython<br>Bat voltage detection:1004<br>Onboard functions:Boot+Reset+1O14 Button<br>1.9 inch ST7789V IPS TFT LCD<br>Drive Chip:ST7789<br>Resolution:170(H) x 320(V)<br>Interface:8-Bit Parallel<br>Screen Type:TFT IPS LCD<br>Pixels Per Inch():260<br>Screen color:Full color<br>Working Power Supply:3.3v<br>Material: PC+Plastic<br>Color: As shown<br>Due to different product batches, the appearance , but it does not affect the use<br><br>Package Contents:<br>1 x T-Display-S3 Development Board<br>2 x 2.54mm Male Pin<br>1 Cable<br><br>Only the above package content, other products are not included.<br>Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.

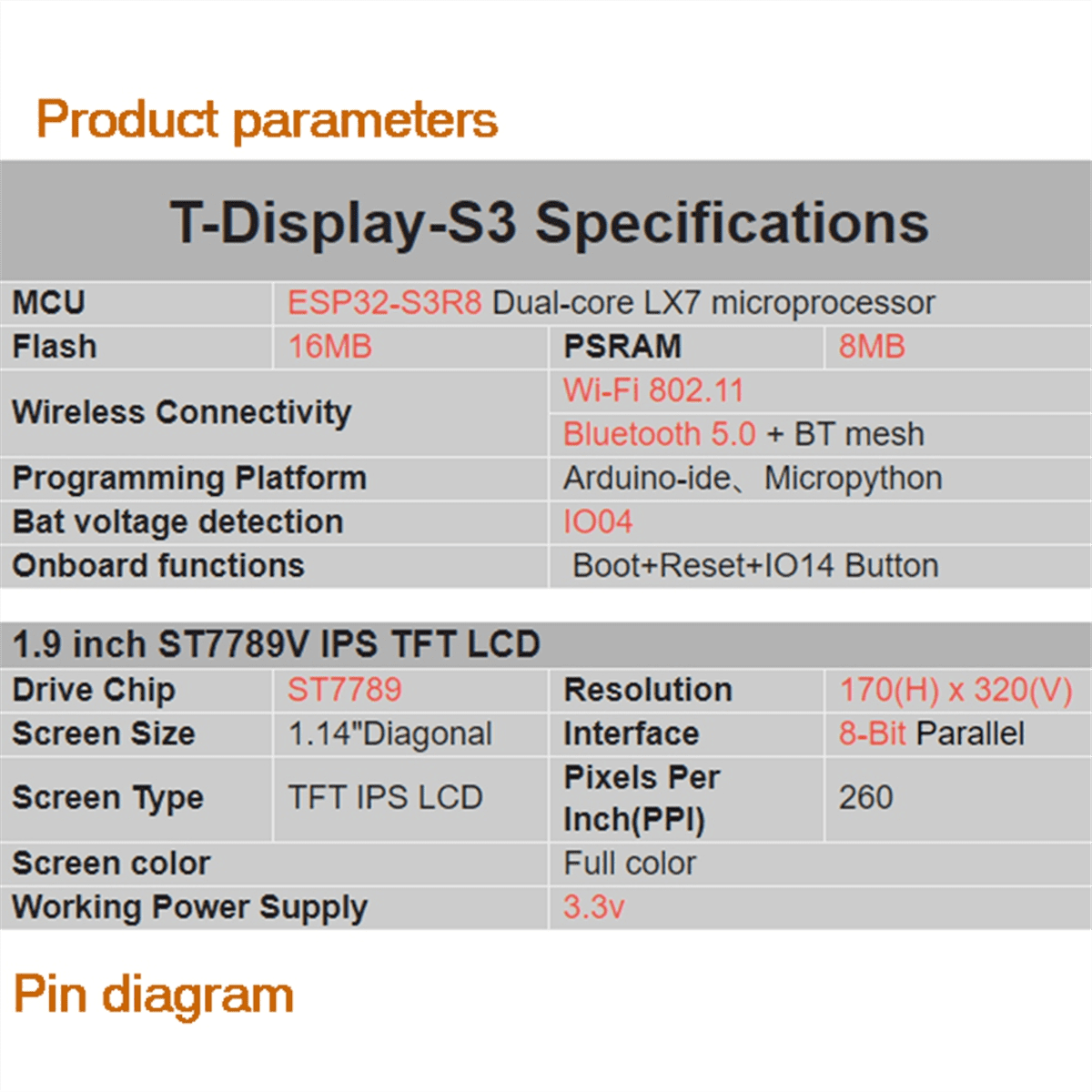

• T-Display-S3 Specifications
• MCU: ESP32-S3R8 Dual-core LX7 microprocessor
• Flash: 16MB
• PSRAM: 8MB
• Wi-Fi 802.11
• Bluetooth 5.0+BT mesh
• Programming Platform: for -ide,Micropython
• Bat voltage detection: 1004
• Onboard functions: Boot+Reset+1O14 Button
• 1.9 inch ST7789V IPS TFT LCD
• Drive Chip: ST7789
• Resolution: 170(H) x 320(V)
• Interface: 8-Bit Parallel
• Screen Type: TFT IPS LCD
• Pixels Per Inch(): 260
• Screen color: Full color
• Working Power Supply: 3.3v
• Material: PC+Plastic
• Color: As shown
• Due to different product batches, the appearance , but it does not affect the use
• Package Contents: 1 x T-Display-S3 Development Board 2 x 2.54mm Male Pin 1 Cable
