Power Relay RKE2CO524LS IP62 Protection, AC 24V Coil, 8 Pin 7A, DPDT 2NO 2NC, with Socket Base, UL Certification (AC 24V, 1)
Product details
| Management number | 221598431 | Release Date | 2026/05/03 | List Price | $3.48 | Model Number | 221598431 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
This RKE industrial control relay is small in size, easy to install, and has a large contact load, 2C 7A; 4C 5A. With non-polarity LED integrated in relay, With lockable test button and inspection window. It is widely used in the output signals and safety drives of control systems such as PLC, CNC systems, robots, and intelligent manufacturing. It is the best choice for realizing remote control, production and processing, packaging, transportation, testing, warehousing, and other types of equipment and product automation assembly lines. Parameters:Coil Voltage: AC 24VType : DPDT(2NO 2NC)Number of Terminals : 8Load Resistance: 7A/250VAC, 30VDC Motor Load: 1/6HP, 240VACMax. switching capacity (resistive): 2C: 1750VA, 210W; 4C: 1250VA, 150WMin. switching capacity: 170mW(17V/10mA)Initial contact resistance: ≤50mΩMaterial: Ag alloy

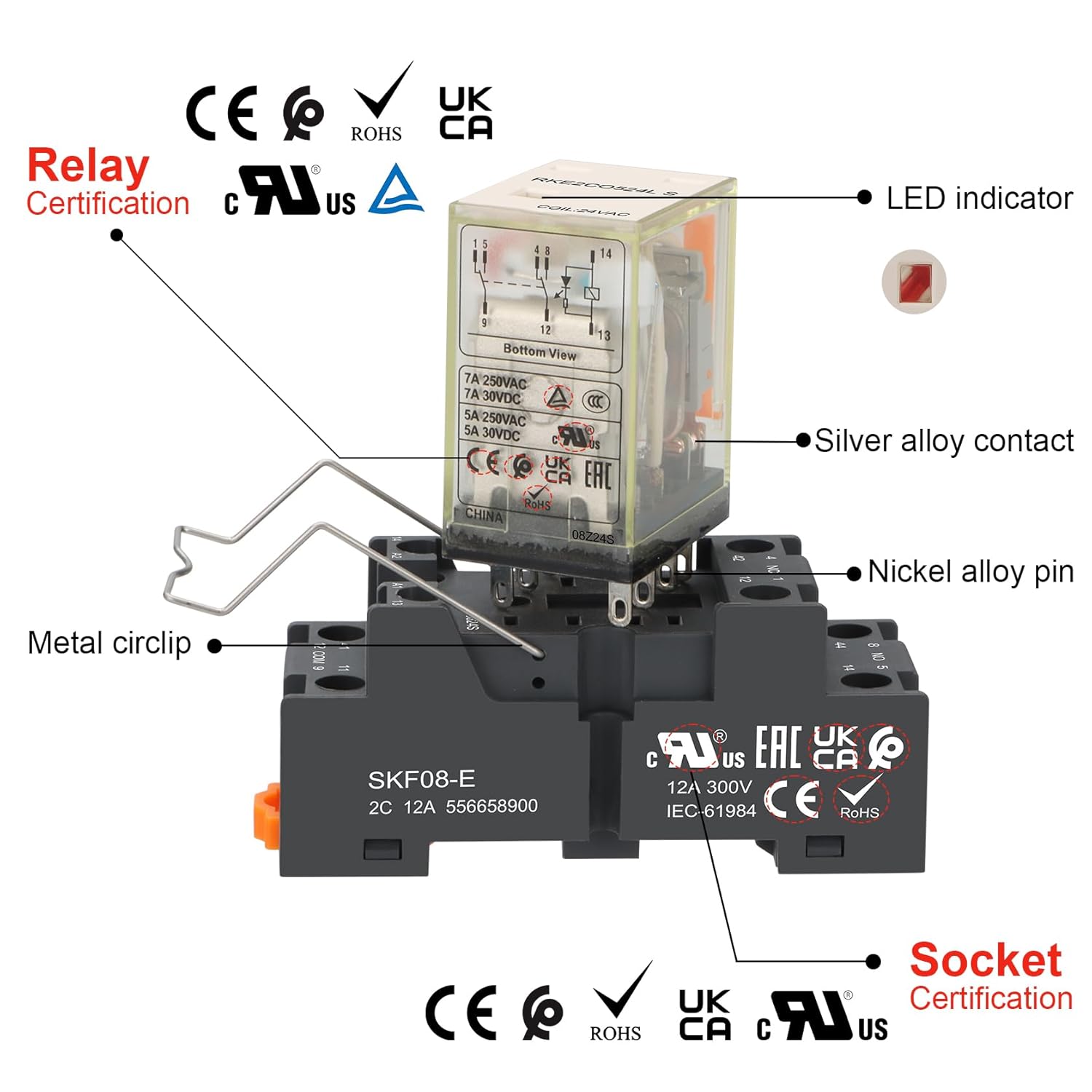

- Product Name: Electromagnetic Power Relay; Relay Model: RKE2CO524LS

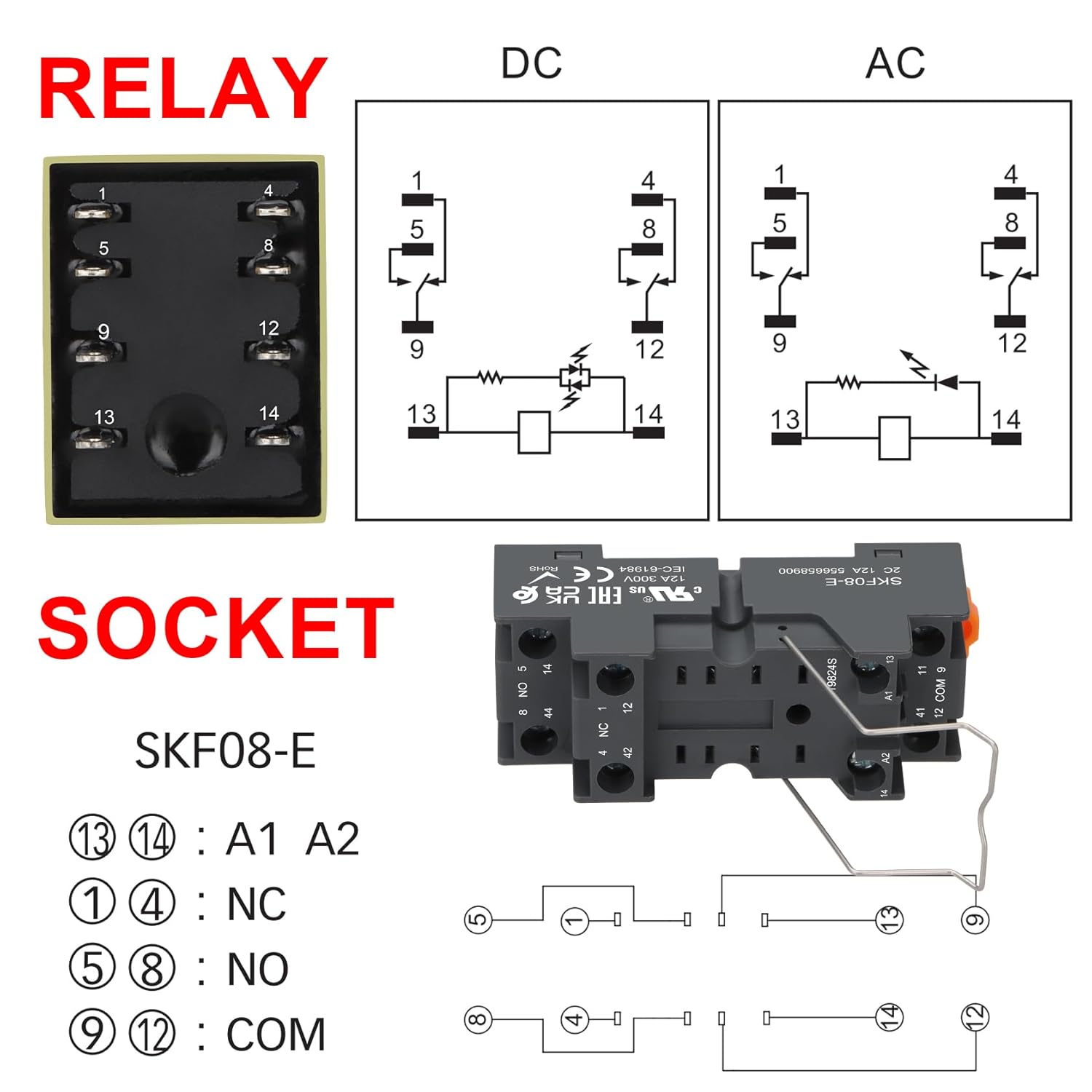

- Coil Voltage: AC 24V; Type: DPDT(2NO 2NC); Number of Terminals: 8
- Load Resistance: 7A/250VAC, 30VDC; Motor Load: 1/6HP, 240VAC

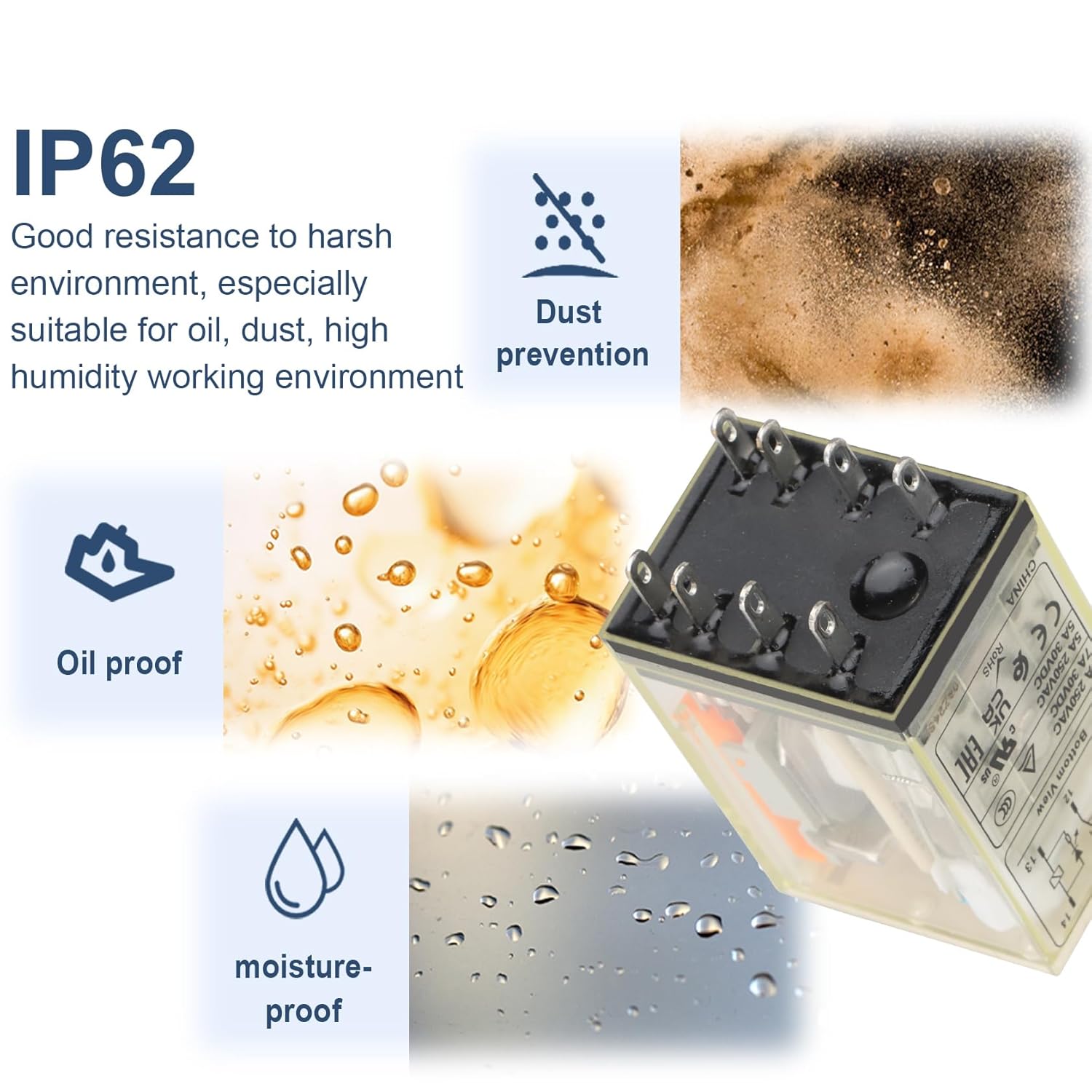

- UL, TÜV, CE, ROHS, CP, EAC Certified for Quality Assurance, IP62 protection, good resistance to harsh environments, especially suitable for working environments with high oil, dust and humidity

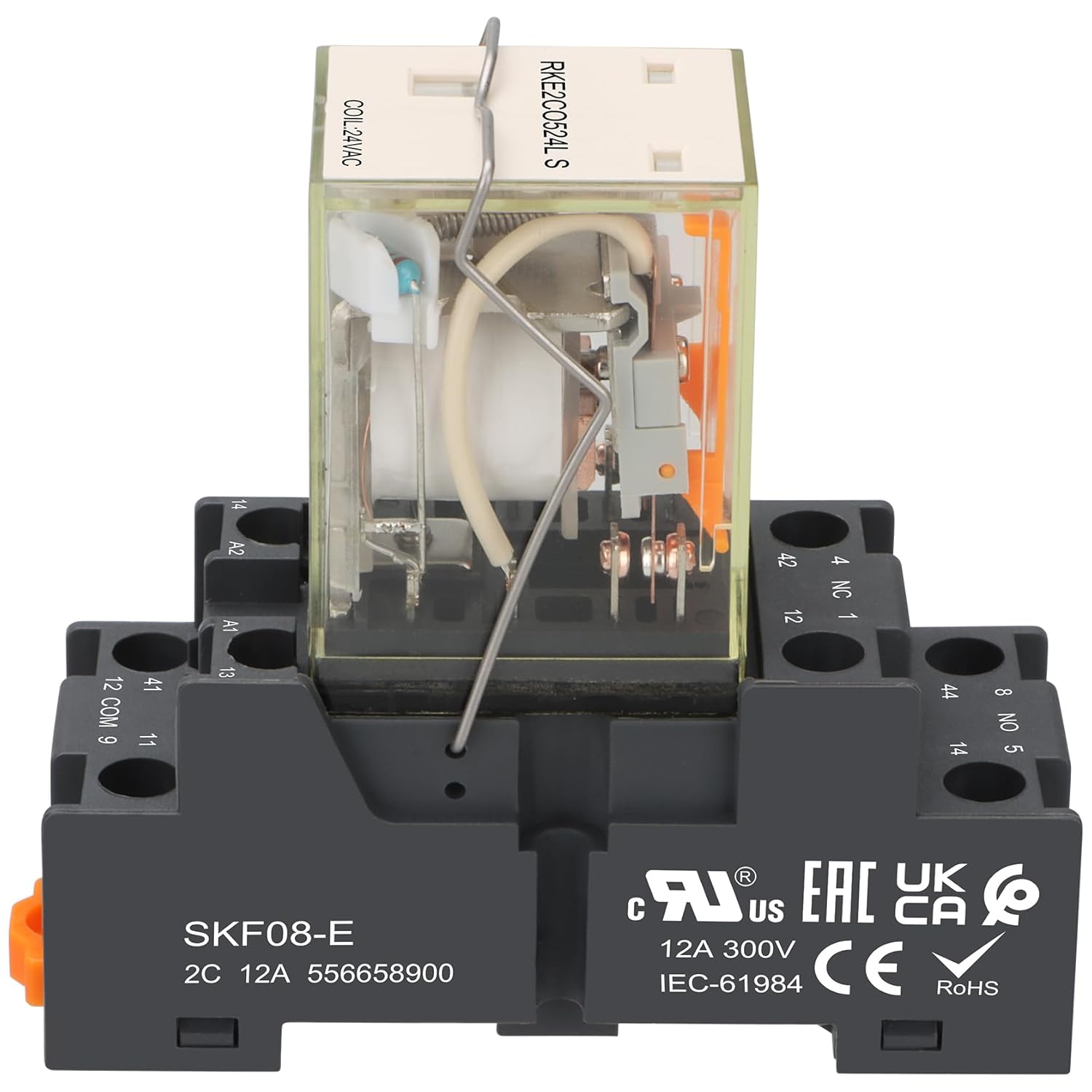

- Package Content: 1 x RKE2CO524LS Power Relay with Socket Base
| Model | RKE2CO524LS |
|---|---|
| Brand Name | Weasch |
| Part Number | RKE2CO524LS |
| Contact Type | Normally Closed, Normally Open |
| Manufacturer | Weasch |
| Mounting Type | Plug In Mount |
| Connector Type | Plug-In |
| Current Rating | 7 Amps |
| Contact Material | Silver Alloy |
| Specification Met | CE, CP, RoHS, TUV, cULus |
| Included Components | RKE2CO524LS |
| Upper Temperature Rating | 70 Degrees Celsius |
