Pneumatic Chamfering Tool Handheld, Mini Air-Powered Chamfering Machine Trimming, 45° Arc Corner with 1/4 Inch Air Inlet for Metal Wood Beveling Deburring (C Angle Blades)

Pneumatic Chamfering Tool Handheld, Mini Air-Powered Chamfering Machine Trimming, 45° Arc Corner with 1/4 Inch Air Inlet for Metal Wood Beveling Deburring How to Replace blade? Use a hexagon wrench to loosen the plum screw,remove the baffle plate, remove the blade screw with a ring wrench,remove the old blade,and replace it with a new one. The chamfer size can be adjusted at will: Loosen the 2 screws of the black gear plate with a thinner wrench, twist the black gear plate left and right, adjust the chamfer size, and fix the 2 screws back to the original position. Maintenance Tips 1. Before using the new machine, please inject pneumatic tool oil and inject about 4C.C into the air inlet. After continuous use for about 3 hours, about 4C.C is also injected into the air inlet. 2. After injecting pneumatic tool oil, let the machine idling for about ten seconds (do not operate), and let the internal parts of the grinder be lubricated as a whole before proceeding.

• Versatile: This pneumatic chamfering machine can chamfer R/C angles, round holes, irregular edges, arcs, and straight edges on a variety of materials including steel, aluminum, copper, acrylic, and wood.
• Difference Between C and R Angle: C Angle blade is angular, mostly used for metal chamfering and R-angle blade is rounded and chamfered for woodworking.
• Easy Operation: This 45-degree Pneumatic mini chamfering machine air tools has a new lightweight design, small and exquisite, and can be easily operated with one hand. Use the matching wrench to easily adjust the chamfer size and replace the blade.
• Adjustable Speed and Angle: The mini deburring trimming chamfering tool air grinder 1-5 block valve adjustment thickened knob, freely adjust the gear speed you need. The chamfer size can be adjusted at will. The safety switch is used to prevent accidental touch to protect the user's safety at all times. 1/4 inch metal filter, free speed: 30000 RPM, air consumption 0.4/min.

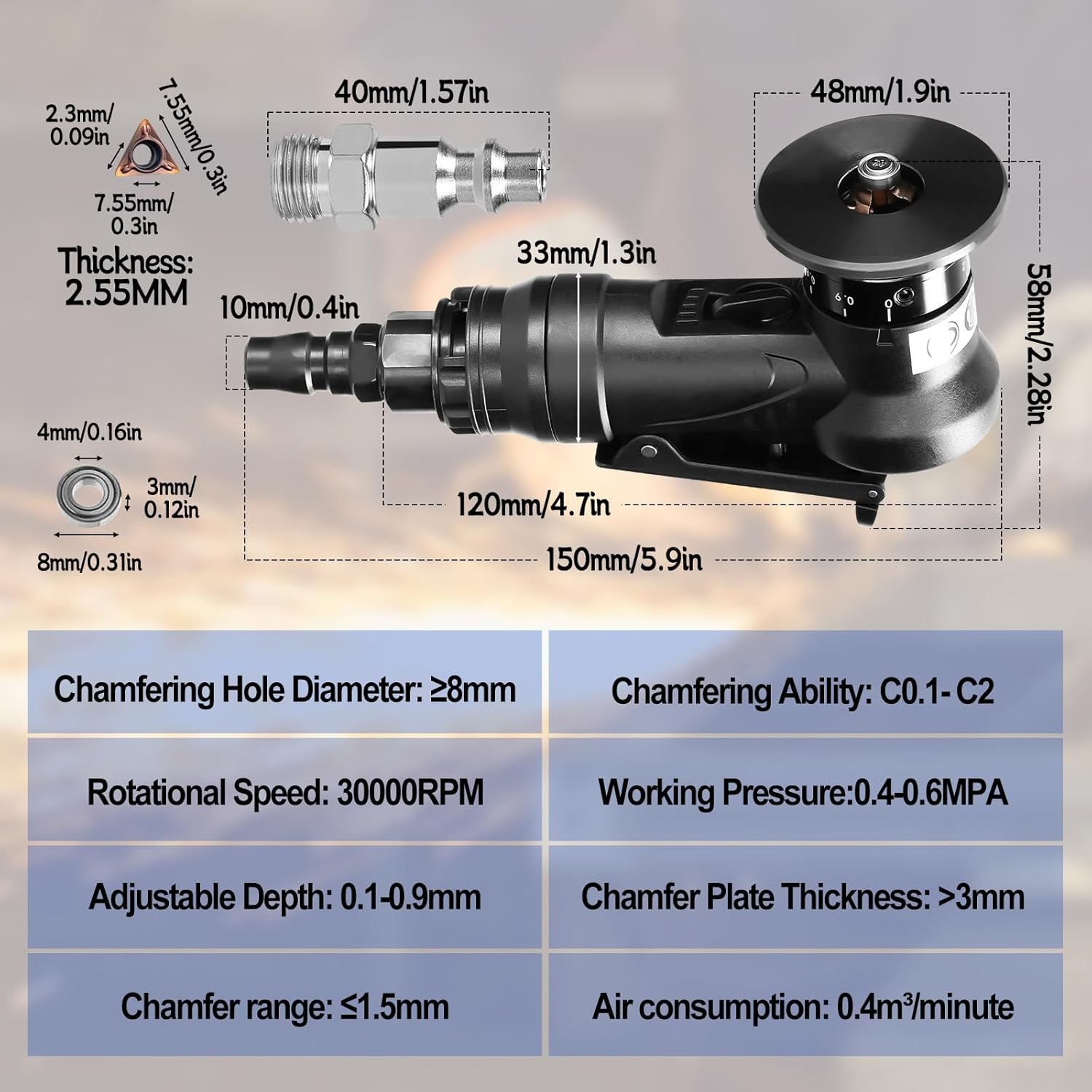

• Spesification: Free Speed 30000 RPM, Air consumption 0.4/min, Air inlet port: 1/4 inch PT. Trimming Capacity: Chamfering: C0.1-C1.5, ARC cornor:R0.1-R1.5, Adjustable depth:0.1mm-0.9mm.
