Kyocera KKCR 163C, Right-Hand, External Grooving Toolholder with a 0.2100" Max Depth of Cut for Shallow Grooving Applications

The versatility of the Cera-Notch system is what makes this grooving and threading tool so popularThe universal grooving geometry is easily interchangeable with a wide variety of toolholdersKyocera cermets can offer better surface finishes and tool life than coated carbides on steelsCera-Notch System includes internal and external holders and inserts for grooving, threading, face grooving, and deep groovingCompatible with KCG3…, KCGP3…, KCRP3…, KCGDP… InsertsProduct Details:Grooving Type: ExternalHand of Holder: Right-HandSeries: Cera-NotchToolholder Style: KKC[a] Rake Angle (Degree): Insert Reliant[CDX] Max Depth of Cut (Decimal Inch): 0.2100[CDX] Max Depth of Cut (mm): 5.33[CW] Insert Cutting Width (Decimal Inch): 0.0310-0.1890[CW] Insert Cutting Width (mm): 0.79-4.80[H] Shank Height (Decimal Inch): 1.0000[H] Shank Height (mm): 25.40[HF] Cutting Edge Height (Decimal Inch): 1.0000[HF] Cutting Edge Height (mm): 25.40[B] Shank Width (Decimal Inch): 1.0000[B] Shank Width (mm): 25.40[LF] Functional Length (Decimal Inch): 5.0000[LF] Functional Length (mm): 127.00[LH] Head Length (Decimal Inch): 1.2500[LH] Head Length (mm): 31.75[WF] Cutting Edge Distance (Decimal Inch): 1.2500[WF] Cutting Edge Distance (mm): 31.75Coolant Through: NoInsert Holding Method: ClampMulti-Use Tool: NoApplication: Shallow GroovingToolholder Material: SteelUnit of Measure: InchCompatible Insert Hand: Right-HandCompatible Inserts (Partial): KCG3…, KCGP3…, KCRP3…, KCGDP…Cera-Notch Grooving & Threading System BrochureAutomotive Tooling Solutions Brochure

• The versatility of the Cera-Notch system is what makes this grooving and threading tool so popular
• The universal grooving geometry is easily interchangeable with a wide variety of toolholders
• Kyocera cermets can offer better surface finishes and tool life than coated carbides on steels

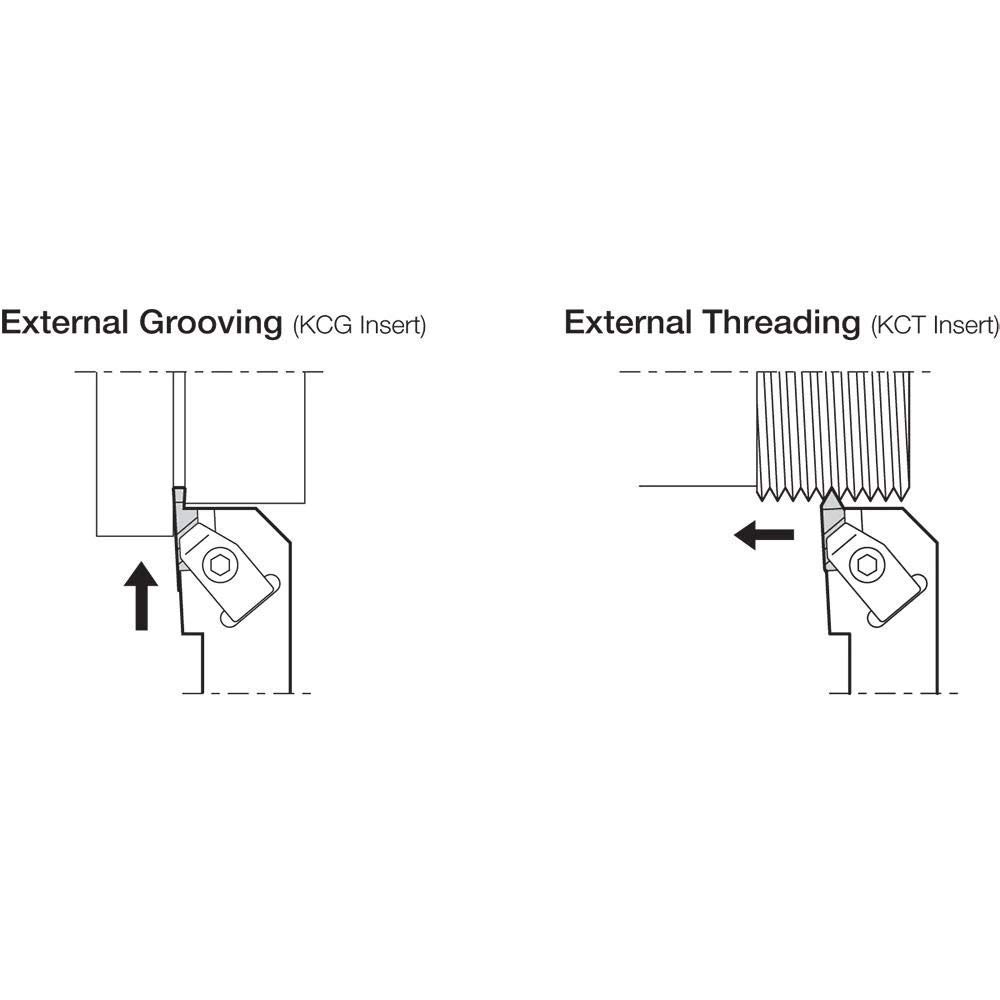

• Cera-Notch System includes internal and external holders and inserts for grooving, threading, face grooving, and deep grooving
• Compatible with KCG3…, KCGP3…, KCRP3…, KCGDP… Inserts
