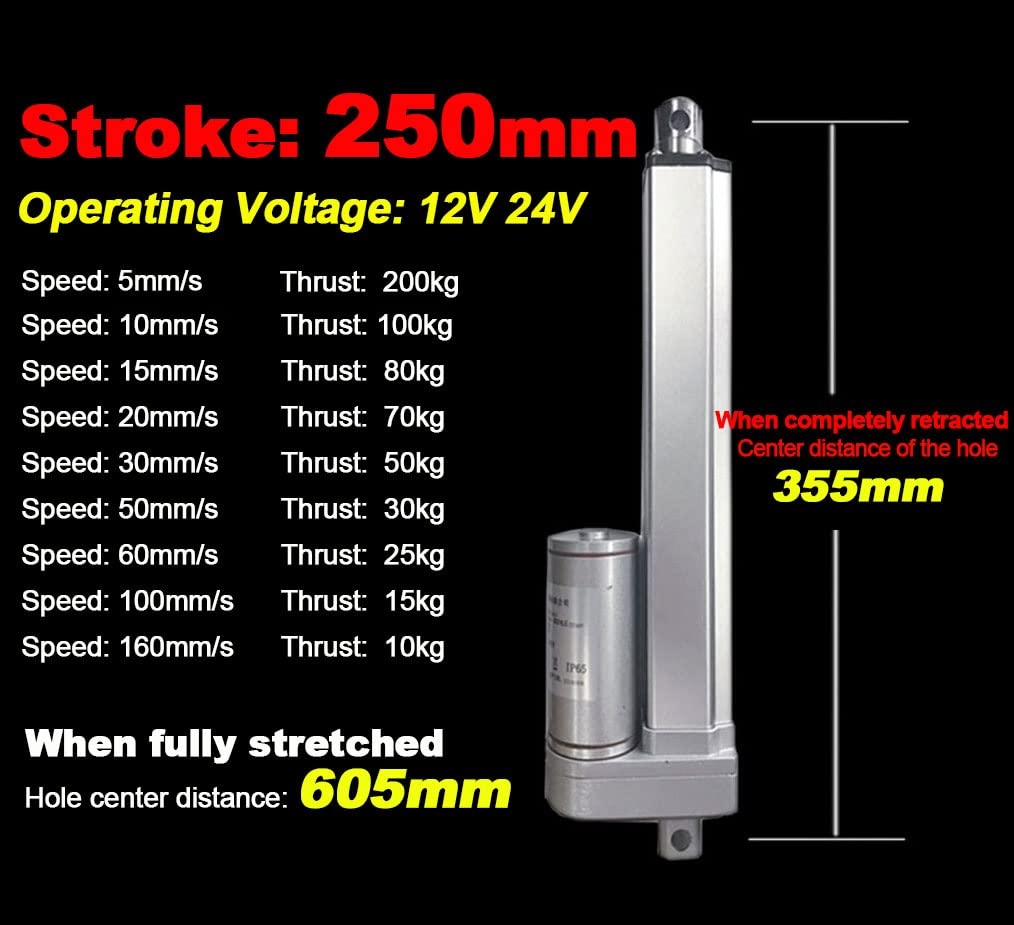

Electric Heavy Duty Linear Actuator Motor DC 12V 24V 50mm - 800mm High Speed/Low Speed Max. 2000N Waterproof IP65 Electric Stand Lifting Rod(60mm/s-250N(25KG),24V-250mm)

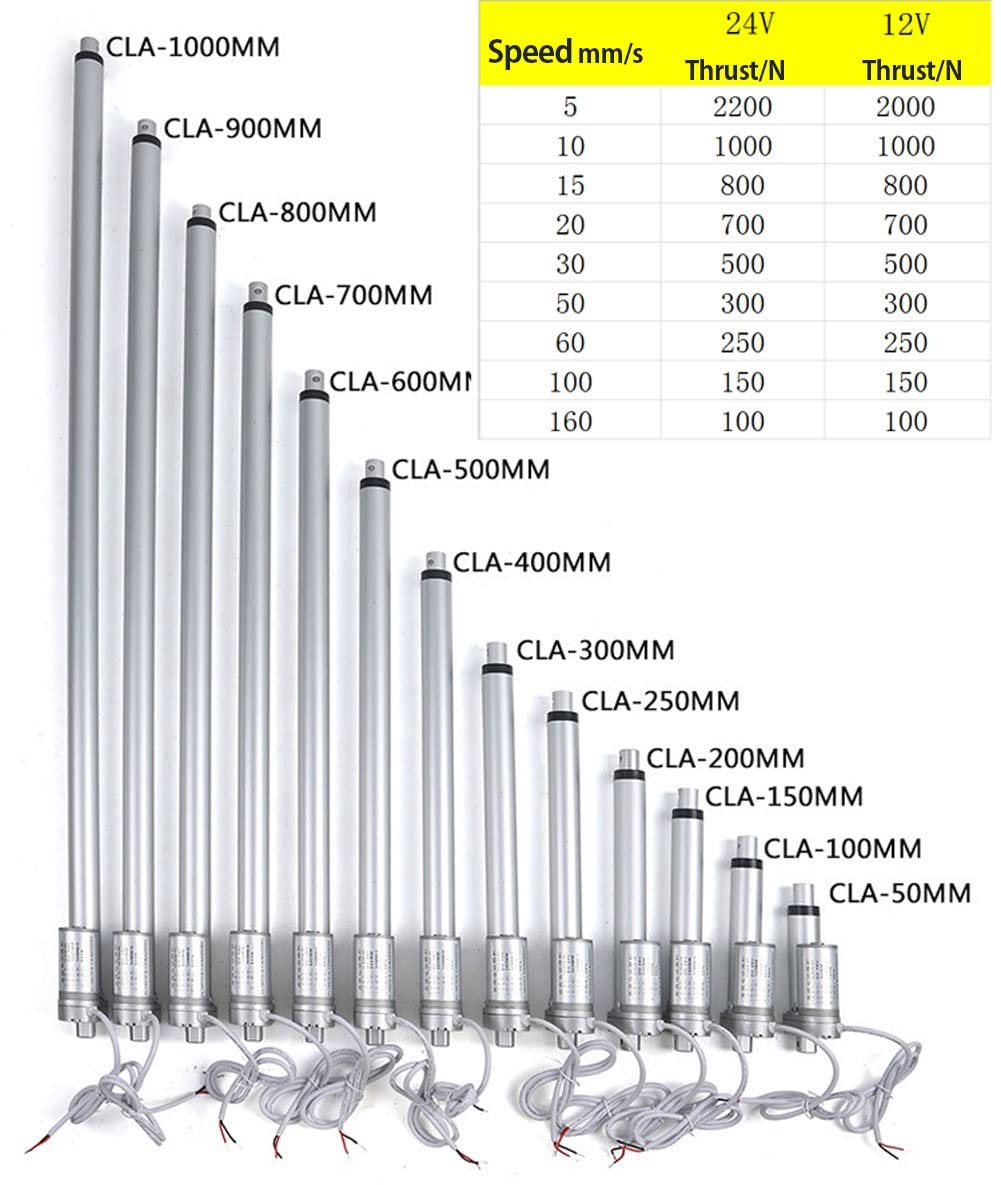

DC 12V 24V linear actuator is used to get the purpose of moving things in a straight line(up and down, or side to side). Typical applications include driving electric gates, automatic windows and other home automation assemblies. 1. Built-in limit switches. When the telescopic bar runs to the top or to the top, it will automatically disconnect the electricity. 2. It can be stop at any position, with self-locking function.3. The push rod is driven by a DC motor and the screw rotates. The telescopic rod can only telescope and will not rotate.4. The motor is positive and negative. For example, if the positive electrode is stretched and the negative electrode is shrunk, the telescopic direction of the rod can be changed by changing it.5. The power of putting is related to speed. The faster the speed, the smaller the power, and the slower the speed, the greater the power.6. Power Saving: The wire uses oxygen-free pure copper as a conductor, low resistance, durable, power saving and long service life. Name: linear actuatorMaterial: Aluminum alloyMax. Load capacity: 200kg/2000NInput Voltage: 12V DC / 24V DCSpeed: 5mm/s, 10mm/s, 15mm/s, 20mm/s, 25mm/s, 30mm/s, 50mm/s, 60mm/s, 100mm/s, 160mm/sStroke Length: 50mm, 100mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm, 550mm, 600mm, 700mm, 800mmRated power: 20W, maximum 35W.Package Content1 x Linear Actuator

• 【Heavy Duty Linear Motion Actuator】Electric putter, also known as push rod motor, electric cylinder and linear actuator. The push rod adopts low-noise DC brushed motor, noise level is less than 42dB, Built-in stroke switch. DC 12V 24V, Stroke Length: 50mm - 800mm, Speed: 10mm/s - 160mm/s, Maximum Load = 200kg(2000N).
• 【Durable】The inside of the gearbox uses powder metallurgy technology. The pure metal gear has a longer life. Thickened aluminum alloy tube, strong, good corrosion resistance.
• 【IP65 water proof】Built-in stainless steel screws, metal motor housing and is water-resistant and sealed against dust for rugged durability.
• 【Free Stop】Can be stopped at any position, built-in lock, can be used safely and reliably. The linear actuator features easy control, low power consumption, low failure rate and stable operation.
• 【Widely Used】 Commonly used in automotive, engineering industry, agricultural machinery, wedding system, industrial electric lifting system, electric bed, traction bed, electric sofa, electric lifting lever, electric booth, electric sunroof, electric wheelchair, etc.
