750W Heavy-duty Precision Metal Bench Lathe Spindle Taper MT4, Distance Between Centers 27.56", 10.24" Swing Diameter Over Bed, 53.9"x20.5" Size BK-260L AC110V
$2,589.00
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by beautifulmindsinc.com
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
$2,589.00
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by beautifulmindsinc.com
Free 30-day returns Details
Product details
| Management number | 221716019 | Release Date | 2026/05/03 | List Price | $1,035.60 | Model Number | 221716019 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- 【Enhanced Precision】 The 750W Heavy-Duty Metal Lathe features a dual-speed control system, allowing for quick and accurate speed adjustments from 115 to 1620rpm,.
- 【Wider Processing Range】 With a metric thread range of 0.2-3.5mm and inch range of 8-56TPI, this lathe caters to a broader spectrum of applications, fulfilling more of your workshop needs
- 【Movable & Adjustable Tailstock】 The MT2-tapered tailstock is both mobile and fixed, accommodating workpieces up to 27.56" apart and equipped with a set-screw mechanism for precise operations.

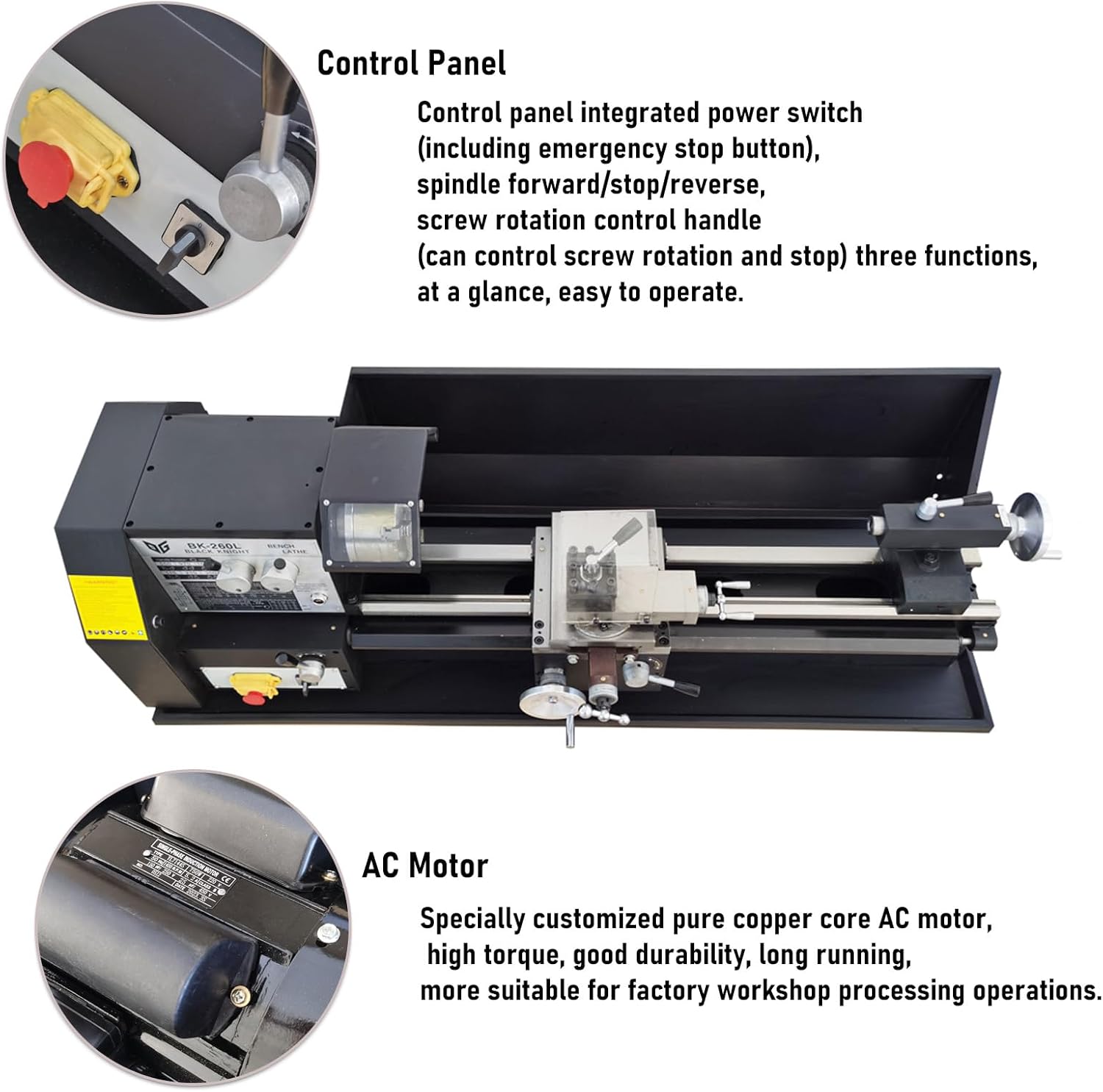

- 【Intuitive Operation】The control panel integrates a power switch, emergency stop button, and spindle direction controls, providing a clear layout for effortless operation and enhanced safety.
- 【Durable & High-Torque】 this lathe boasts a powerful AC motor for greater torque, increased rigidity, and a larger turning capacity, ensuring stability and longevity for demanding projects.
- 【Hardening process treatment】The bed is treated by quenching process, which greatly improves the strength, toughness and fatigue strength of the bed, thus improving the accuracy of the lathe.

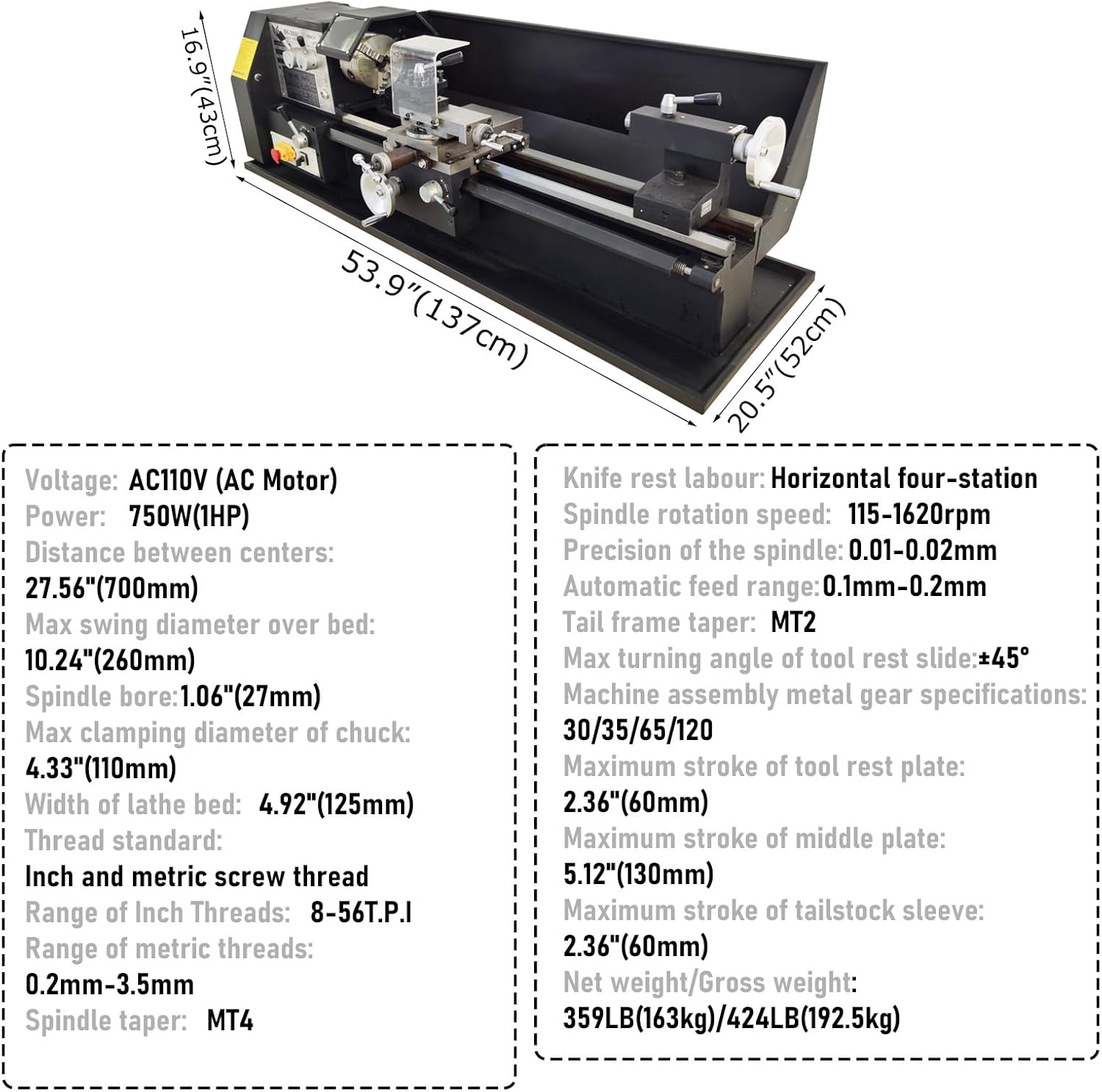

- Main Techincal Data: Max swing diameter over bed: 10.24"(260mm), Power: 750W(1HP), Precision of the spindle: 0.01-0.02mm, Spindle rotation speed: 115-1620rpm, Net weight : 359LB(163kg), Distance between centers: 27.56"(700mm), Machine assembly metal gear specifications: 30/35/65/120, Automatic feed range: 0.1mm-0.2mm
| Color | Black |
|---|---|
| Speed | 1620 RPM |
| Voltage | 110 Volts (AC) |
| Wattage | 750 watts |
| Item Weight | 425 pounds |
| Part Number | CD056851 |
| Manufacturer | WYDDDARY |
| Package Dimensions | 57.48 x 24.41 x 24.02 inches |
