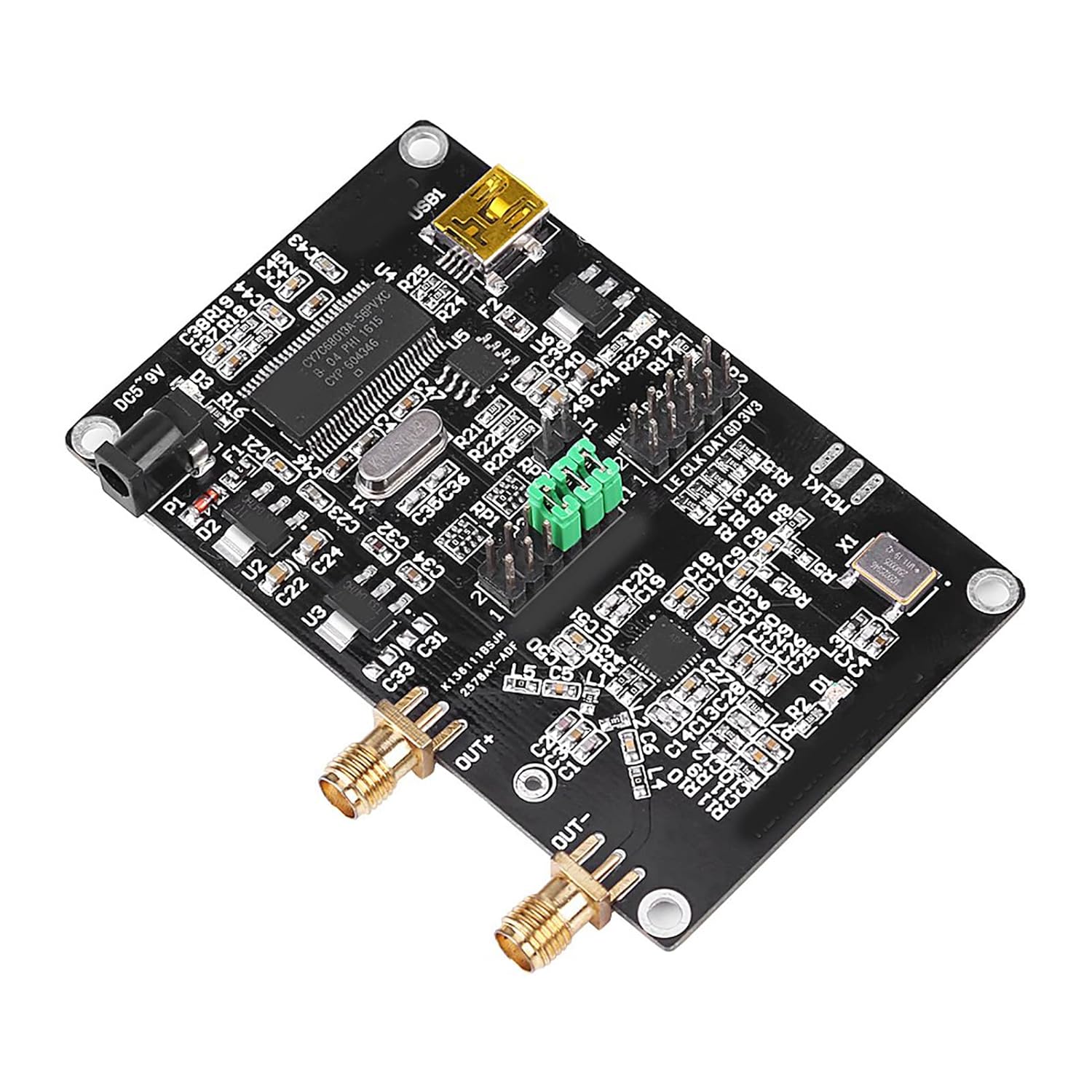

35M 4.4GHz RF Waft Source Frequency Synthesizer ADF4351 Development Board, Waft Generator Module with Well Designed Layout, Controlled by Upper Computer Software, Convenient

Features:This ADF4351 signal source development board has well designed circuit board layout.It can be controlled by the upper computer official software.All control pins are leaded out for convenient .Default + -50ppm 25M active crystal oscillator.Circuit diagram in PDF formatandSTM32 test program are provided.Three-wire Spilead to control pin and state locking pin,allowing all functions including point frequency sweep and frequency hopping, stepping to 1K, low frequency step can be 0.1K, according to crystal frequency.The control interface of the single chip micro controller for easy controlling independently.It can also control ADF5355.Specifications:Output Frequency Range: ADF4351: 35M-4.4GPower Supply: DC002 Interface DC4-9V(typical 5V) Output Signal: 2.2-4.4G fundamental (sine ), 35M-2.2G fundamental division (square)Signal Output Connector: SMA femaleWeight: 36gFile Download:http://pan.baidu.com/s/1dE84sGp (password: nlwq)Package Included:1 x signal Generator1 x sma holder1 x USB cableNote:Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.

• Wide Frequency Range: Offers a broad output frequency range from 35M to 4.4GHz, meeting various waft generation needs.
• Advanced Control: Features three-wire SPI lead to control pin and state locking pin, enabling functions like point frequency sweep and frequency hopping.

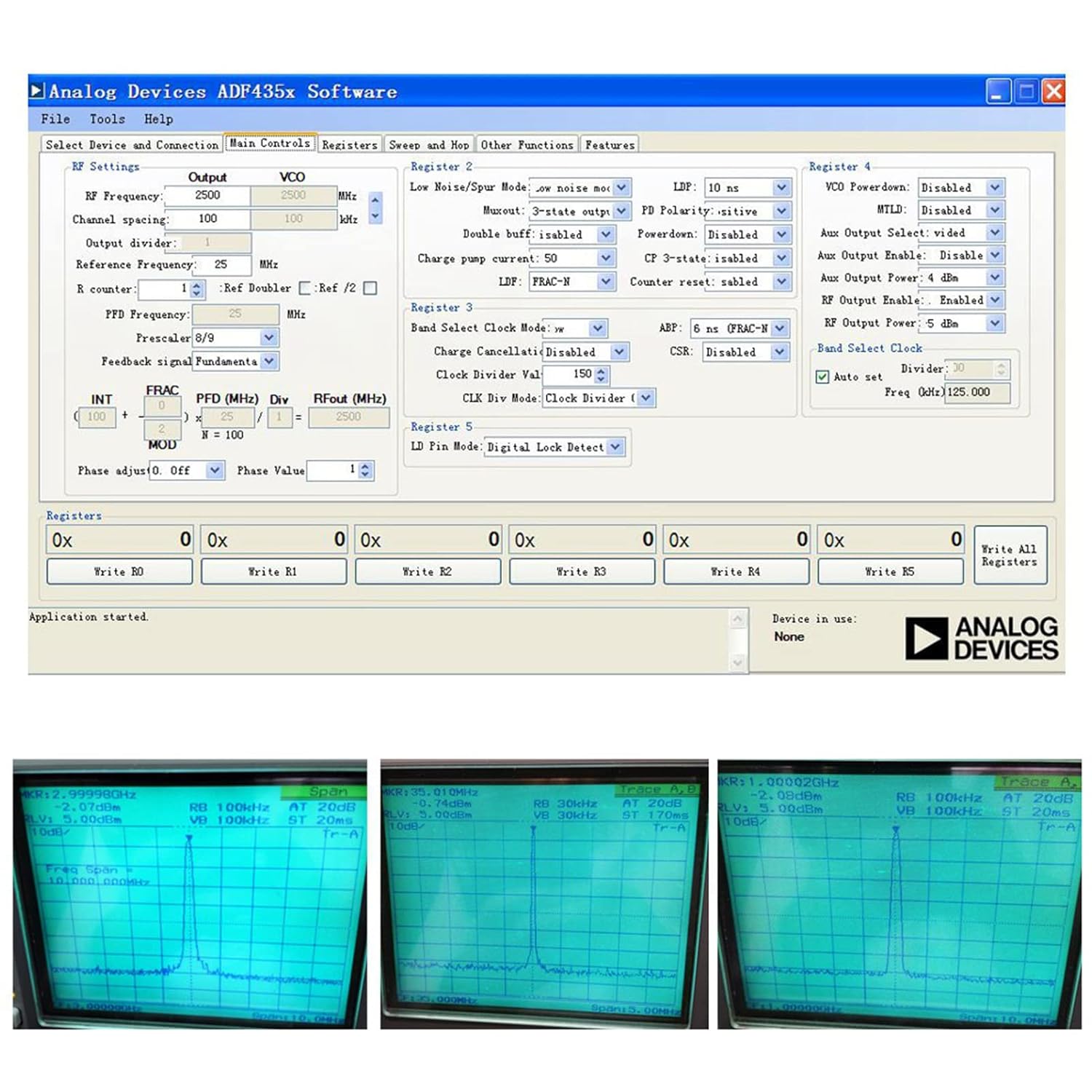

• User-Friendly Design: All control pins are led out for easy , and the board can be controlled by official upper computer software.
• High-Quality Output: Provides 2.2-4.4G fundamental billow (sine ) and 35M-2.2G fundamental division (square ) through SMA female connector.
• Complete Package: Includes 1 x waft generator, 1 x SMA holder, and 1 x USB cable for immediate use out of the box.
