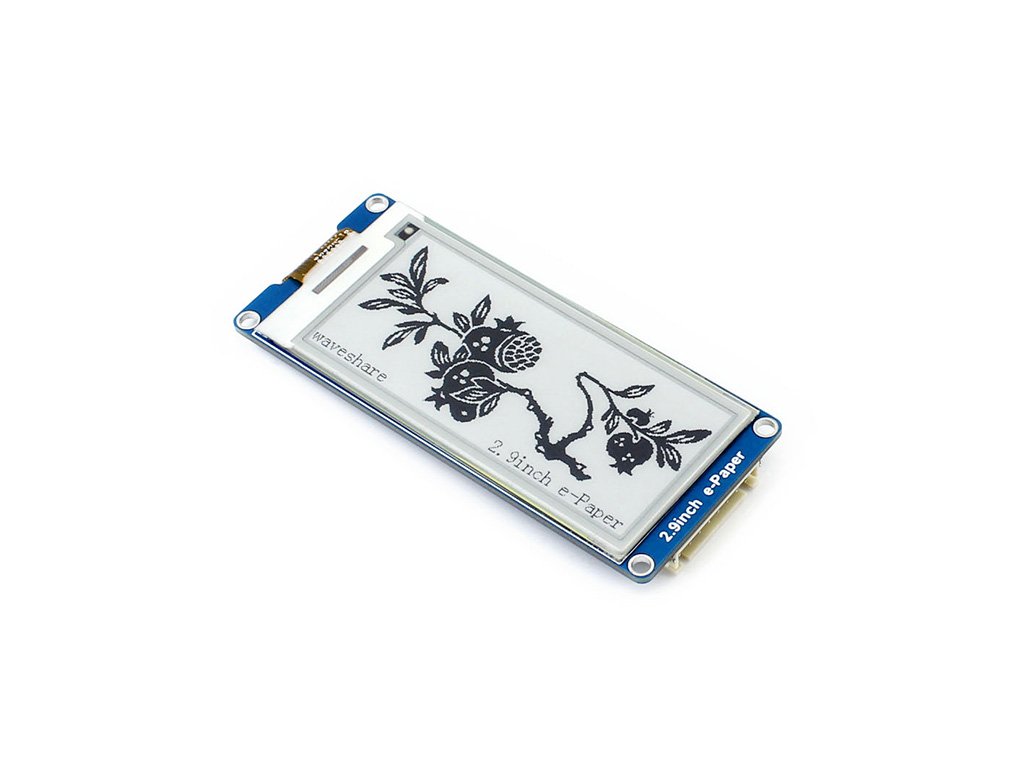

296x128 Resolution 2.9 Inch E-Paper Display Panel Module 3.3v E-Ink Electronic Screen SPI Interface with Embedded Controller Support Partial Refresh for Raspberry Pi/Arduino/Nucleo/Jetson Nano
Product details
| Management number | 217020755 | Release Date | 2026/04/19 | List Price | $11.16 | Model Number | 217020755 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

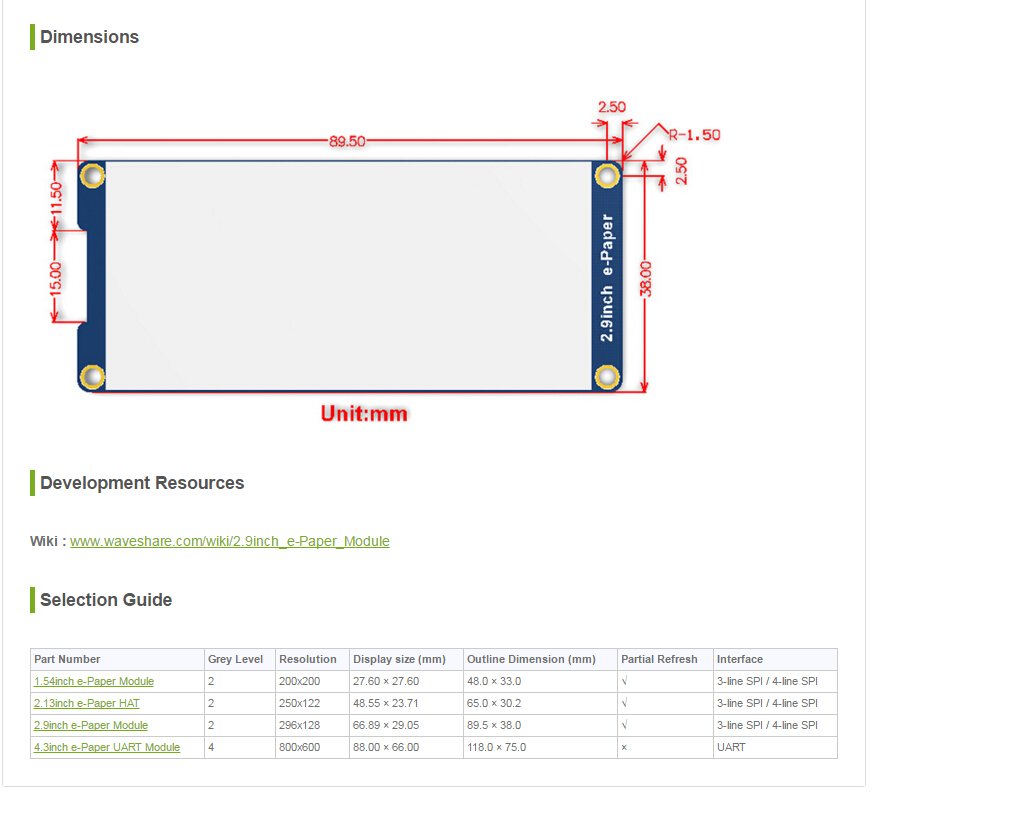

Description: This is an E-Ink display module, 2.9inch, 296x128 resolution, with embedded controller, communicating via SPI interface, supports Partial refresh. Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on. Specifications: Operating voltage: 3.3 V/5 V. Interface: 3-wire SPI, 4-wire SPI Outline dimensions: 89.5 mm x 38 mm. Display size: 66.89 mm x 29.05 mm. Dot pitch: 0.138 × 0.138. Resolution: 296 × 128. Display colour: black, white. Grey level: 2. Partial refresh time: 0.3s. Full refresh time: 2s. Refresh power: 26.4mW (typ.) Standby power: <0.017mW. Viewing angle: >170°. Package includes: 1. 1 x 2.9 inch e-paper module. 2. PH2.0 20 cm 8 pin x 1. 100% original,offer technical support!
- No backlight, keeps displaying last content for a long time even when power down
- Ultra low power consumption, basically power is only required for refreshing
- SPI interface, for connecting with controller boards like for Raspberry Pi/Arduino/Nucleo, etc.
- Onboard voltage translator, compatible with 3.3V/5V MCUs
| UPC | 615311268096 |
|---|---|
| Brand | waveshare |
| Color | 2.9 inch E-Ink Module 296 x 128 |
| RAM Type | DDR SDRAM |
| Model Name | 2.9 Zoll E-Paper Modul |
| Resolution | 296x128 |
| Unit Count | 1 Count |
| Item Weight | 0.01 Kilograms |
| Screen Size | 2.9 Inches |
| Aspect Ratio | 2.30:1 |
| Display Type | E-Ink |
| Manufacturer | waveshare |
| Model Number | 2.13inch E-Ink HAT 250x122 |
| BuiltIn Media | 2.9inch e-Paper Module, PH2.0 20cm 8Pin |
| Item Dimensions | 1.38 x 0.79 x 0.08 inches |
| Power Plug Type | No Plug |
| Processor Brand | VIA |
| Operating System | Linux |
| Graphics Ram Type | GDDR6 |
| Native Resolution | 296 x 128 |
| Power Consumption | 26.4 Milliwatts |
| Compatible Devices | Raspberry Pi, Arduino, Nucleo, Jetson Nano |
| Additional Features | Default |
| Hard Disk Interface | Serial ATA |
| Graphics Description | Dedicated |
| HumanInterface Input | Buttons |
| Hard Disk Description | SSD 1TB |
| Connectivity Technology | SPI |
| Graphics Card Interface | Integrated |
| Memory Storage Capacity | 1 TB |
| Display Resolution Maximum | 296 × 128 |
| Wireless Network Technology | Wi-Fi |
| Personal Computer Design Type | Barebone |
