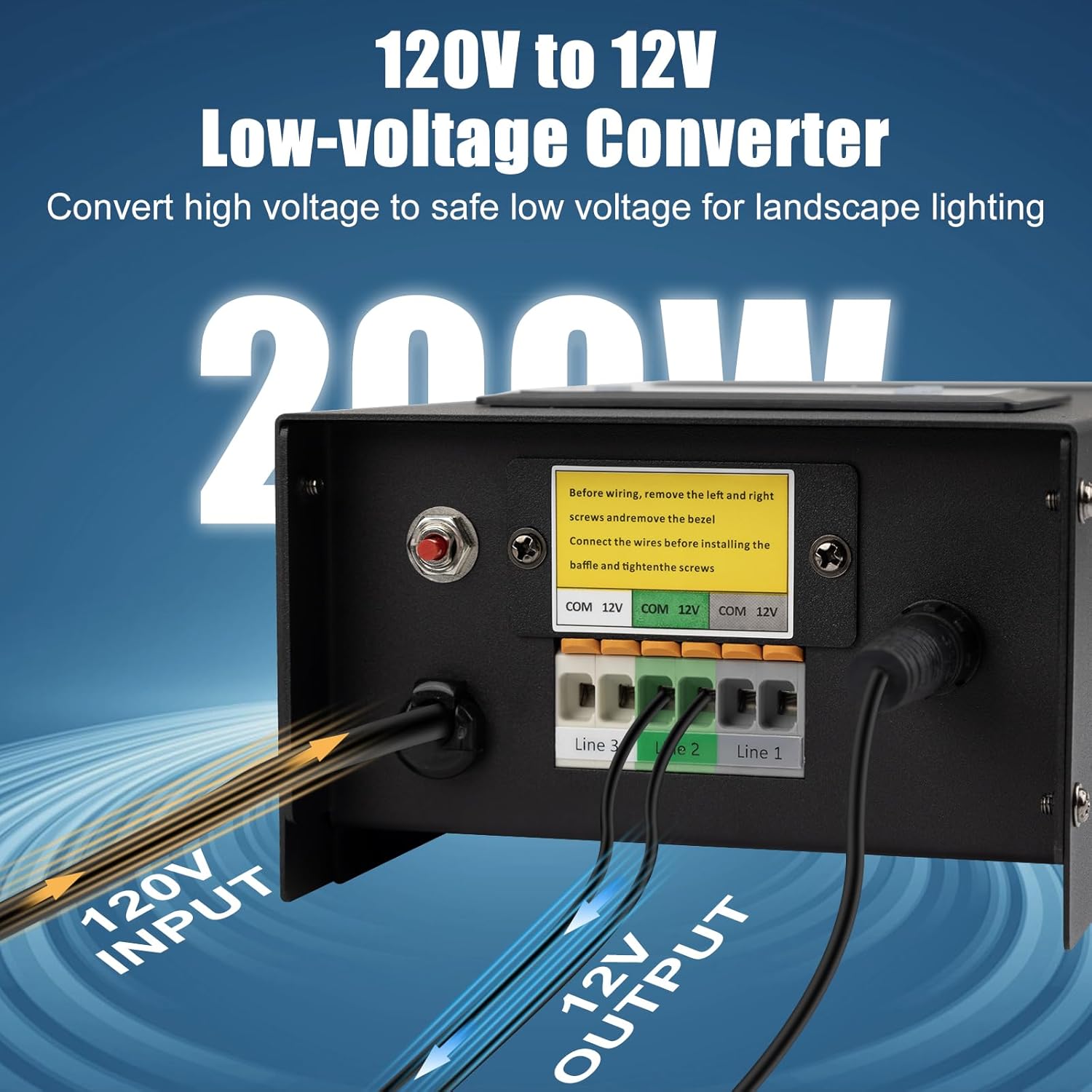

200W Low Voltage Landscape, 3 Zone Independent Control, 120V AC to 12V AC, Landscape Lighting Transformer with Photocell Sensor and Timer, for Spotlight, Pathway Light, Outdoor& Indoor

If the transformer does not connect with load, it shows no output at terminals. Please check your lights are connected or not before measuring voltage.The transformer has a power-off memory function. When the transformer powers on again, the transformer will enter the working mode before the power failure.Circuit breaker may need to be reset if the transformer is not working.landscape transformer with timer1. Calculate the total wattage of your light fixtures in your plan.2. Choose the transformer that is large enough to support the total wattage you need.For example: if you have 7 pack 13W landscape lights, so the total wattage is 91W. Then you can choose the transformer higher than 91WSpecifications:Output: 12VACInput: 120VAC, 60HzMax Power Rating: 200WNumber of Outputs: 3Recommended Output Cable Specifications: UL1015 12AWGNumber of Lines: 3Output Mode: Manual/Auto/CountdownTransformer Size: 10x5x5.7in/25.4x14.7x9cmMounting Holes Distance: 3.79in/9.65cmBaffle Size: 2.6x1.3in/6.5x3.3cmSensor Length: 6.5ft/200cmPlug Length: 47.2in/120cmPlastic Expansion Screws Size: 1.6in/4cmWeight: 10.3lbs /4.7kgWork Environment Temperature: -4°F to 113°FMaterial: Copper coil, lron, Rust-resistant Spray Paint and PlasticPacking List1 x 200w Low-Voltage Transformer3 x Screws3 x Wall Anchors1 x Photo Sensor1 x Baffle1 x Screwdriver1 x Instruction Manual

• 【200W High Power】Landscape light transformer converts 120V AC to 12V safe AC, providing a safer, stabler and more practical electrical current level. Compatible with all 12V low voltage LED and halogen landscape lighting such as LED landscape lights, string light, garden decor, spotlights, porch light, water feature, etc. (Ensure that the total output does not exceed 80% of the supply capacity)
• 【Timing and Memory Function】Advanced technology with 3 independent zones control function, to meet the different lighting time needs for various areas, saving electricity and customizing your outdoor lighting. You can select the control output mode (Manual/Auto/Countdown). The built-in memory function retains your settings even after a power outage, ensuring your outdoor lighting remains consistent and reliable
• 【Digital Display & Photocell Timer】Equipped with a high-sensitivity photocell timer. Simple setup and intuitive digital display instructions without complicated operation. Landscape lighting transformer can automatically turn ON at dusk, and automatically turn OFF at dawn or OFF after a set time 1-12H. The timer function ensures your outdoor lighting is always on when needed, enhancing the beauty and security of your home
• 【Durable and Weatherproof】Made from high-quality anti-rust metal, this 12V transformer protects against rain, snow, dust, and abrasion, and withstands years of use. Ideal for both indoor (garages) and outdoor (patios, gardens, walkways, etc.) installation, it is durability and stability
• 【Safety Protection Device】The bottom of the 200W transformer is designed with an overload protector. When the load power exceeds the rated power of the machine or a short circuit occurs in the load, the overload protector will automatically disconnect and cut off the input power supply, thereby protecting the equipment. When the overload protector trips, it is necessary to manually press it to restore the power input
